We are a Leading Manufacturer & Exporter of Oil Expeller, Spare Parts and Oil Mill Machinery from India

FILTER PRESS WITH PUMP

We supply a wide range of filter presses, which are designed to give maximum filtration efficiency, longer life and least maintenance. Available in different sizes and with varied capacities, we can also provide filter press in custom specifications.

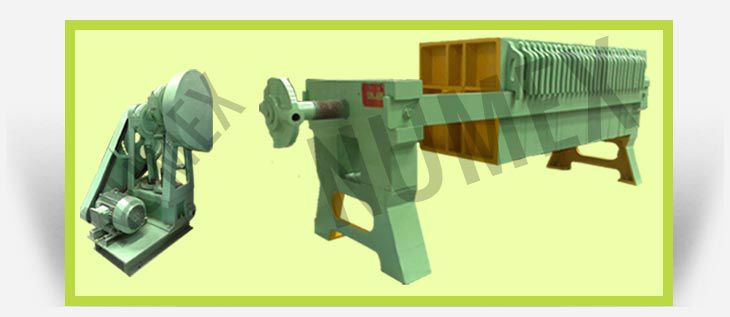

Filter Press
send enquiry Large View

TECHNICAL DATA OF FILTER PRESS WITH PUMP

Size Weight of Filter Press(Kgs) Filtration Area (Sq.Mts) Capacity (Litres/Day) H.P No. Of Pistons Size of Plunger Pump
36″x 36″x 36 Plates 8,000 30 40,000 7.5 Double 80 mm
36″x 36″x 30 plates x 29 Frames 5,500 18 25,000 7.5 Double 80 mm
30″x 30″x 30 Plates 4,400 18 25,000 5 Single 80 mm
24″x 24″x 24Plates x 23 Frames 3,000 10 10,000 5 Double 60 mm
24″ x24″x 30 Plates 2,750 15 12,500 5 Double 60 mm
24″ x24″x 24 Plates 2,350 10 10,000 3 Single 60 mm
18″x 18″x 18 Plates 1,100 4 5,000 2 Single 40 mm
14″x 14″x 14 Plates 650 2 3,500 2 Single 40 mm
12″x 12″x 12 Plates 380 1.5 2500 1 Single 30 mm
Common RPM of Plunger Pumps = 40 to 45
Size Weight of Filter Press (Kgs) Filtration Area (Sq.Mts) Capacity (Litres/Day) H.P RPM of Pump Type of Pump
36″x 36″x 30 plates x 35 Frames 10,000 30 40,000 10 2900 Centrifugal
